# NVIDIA Grace Hopper Superchip

NVIDIA's creation of the <mark style="color:blue;">**Grace Hopper Superchip architecture**</mark> is a strategic move to expand its presence in the data centre market.&#x20;

Traditionally, the data centre CPU market has been *<mark style="color:yellow;">**dominated by x86-based processors**</mark>* from Intel and AMD.   By offering a high-performance, energy-efficient <mark style="color:yellow;">**ARM-based CPU solution**</mark>, NVIDIA aims to compete against incumbent x86-based technologies from Intel and AMD.&#x20;

By introducing the Grace CPU, NVIDIA aims to challenge this dominance and offer an alternative ARM-based solution specifically designed for data centre workloads.

The integration of the Grace CPU with NVIDIA's GPUs through the NVLink interconnect creates a compelling platform for AI, HPC, and data analytics workloads.

The <mark style="color:yellow;">**high-bandwidth, low-latency connection**</mark> between the <mark style="color:blue;">**Grace CPU**</mark> and <mark style="color:blue;">**Hopper GPU**</mark> enables efficient data transfer and communication, optimising overall system performance.

By offering a tightly integrated CPU-GPU solution, NVIDIA aims to provide a compelling platform for AI, high-performance computing, and data analytics workloads.

Also importantly, the Grace CPU's focus on energy efficiency and high memory bandwidth aligns with the growing demand for power-efficient and high-performance computing in data centres.

### <mark style="color:purple;">Architecture Diagram</mark>

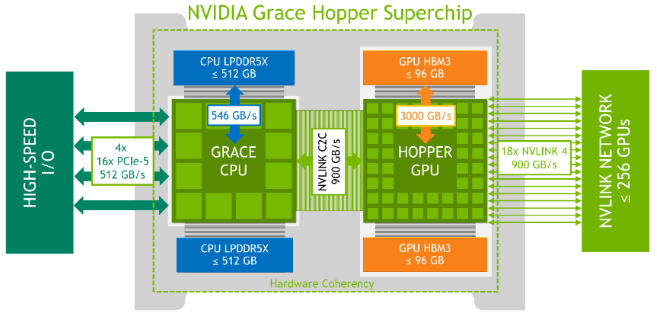

The diagram below illustrates the architecture of the NVIDIA Grace Hopper Superchip, which combines an <mark style="color:blue;">**NVIDIA Hopper GPU**</mark> with the new <mark style="color:blue;">**NVIDIA Grace CPU**</mark> connected via a high-speed, low-latency <mark style="color:blue;">**NVLink interconnect**</mark>.&#x20;

<figure><img src="https://1839612753-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FpV8SlQaC976K9PPsjApL%2Fuploads%2Fa3nXliVjzFvw7nuZf024%2Fimage.png?alt=media&#x26;token=7f195e51-8334-4f2c-a66d-bc760295772d" alt=""><figcaption></figcaption></figure>

### <mark style="color:purple;">Here's a detailed explanation of the architecture</mark>

### <mark style="color:green;">Grace CPU</mark>

* The <mark style="color:blue;">**Grace CPU**</mark> is NVIDIA's first <mark style="color:blue;">**data centre CPU**</mark>, featuring <mark style="color:yellow;">**72**</mark>**&#x20;**<mark style="color:blue;">**Arm Neoverse**</mark> V2 cores, which are ARM's highest-performance core design.  ARM Neoverse is a family of IP cores specifically designed for server and infrastructure workloads.
* It has <mark style="color:yellow;">**512GB**</mark> of <mark style="color:blue;">**LPDDR5X memory**</mark>, providing energy efficiency and high bandwidth of <mark style="color:yellow;">**546 GB/s**</mark> per CPU.  &#x20;
* <mark style="color:blue;">**LPDDR (Low Power Double Data Rate)**</mark> is a type of memory technology commonly used in mobile devices and embedded systems.  &#x20;
* <mark style="color:blue;">**LPDDR5X**</mark> is the latest generation of LPDDR memory, offering higher bandwidth and improved energy efficiency compared to previous generation
* Compared to traditional 8-channel DDR5 designs, Grace CPU's LPDDR5X memory offers *<mark style="color:yellow;">**53% more bandwidth while consuming less power**</mark>*.

NVIDIA's decision to use <mark style="color:blue;">**ARM-based cores**</mark> and <mark style="color:blue;">**LPDDR5X memory**</mark> in the Grace CPU represents a departure from traditional <mark style="color:blue;">**x86-based CPUs**</mark> and <mark style="color:blue;">**DDR memory**</mark> designs commonly used in data centres. &#x20;

### <mark style="color:green;">Hopper GPU</mark>

* The Hopper GPU is NVIDIA's <mark style="color:yellow;">**9th**</mark> generation data centre GPU
* It features <mark style="color:yellow;">**96GB**</mark> of[ <mark style="color:blue;">**HBM3 memory**</mark>](https://training.continuumlabs.ai/infrastructure/data-and-memory/high-bandwidth-memory-hbm3), a first in the market, providing <mark style="color:yellow;">**3 TB/s**</mark> of memory bandwidth.
* Hopper has an increased number of <mark style="color:blue;">**Streaming Multiprocessors**</mark>, higher frequency, and new <mark style="color:yellow;">**4th**</mark> Generation Tensor Cores.
* The new <mark style="color:blue;">**Transformer Engine**</mark> in Hopper enables up to six times higher throughput compared to the previous generation A100 GPU.

#### <mark style="color:green;">NVLink Interconnect</mark>

* The Grace CPU and Hopper GPU are connected via a high-speed, low-latency [<mark style="color:blue;">**NVLink**</mark>](#nvlink-interconnect) interconnect.
* The NVLink provides <mark style="color:yellow;">**900 GB/s**</mark> of bidirectional bandwidth between the CPU and GPU.
* This high-bandwidth, low-latency connection enables efficient data transfer and communication between the CPU and GPU, optimising performance for demanding workloads.

#### <mark style="color:green;">Memory Configuration</mark>

* The Grace Hopper Superchip has a total of <mark style="color:yellow;">**608GB**</mark> of memory, consisting of <mark style="color:yellow;">**512GB**</mark> <mark style="color:blue;">**LPDDR5X**</mark> for the Grace CPU and <mark style="color:yellow;">**96GB**</mark>[ <mark style="color:blue;">**HBM3**</mark> ](https://training.continuumlabs.ai/infrastructure/data-and-memory/high-bandwidth-memory-hbm3)for the Hopper GPU.
* The CPU's <mark style="color:blue;">**LPDDR5X**</mark> memory offers <mark style="color:yellow;">**546 GB/s**</mark> of bandwidth per CPU, while the GPU's <mark style="color:blue;">**HBM3**</mark> memory provides <mark style="color:yellow;">**3 TB/s**</mark> of bandwidth.
* This memory configuration ensures high-speed access to data for both the CPU and GPU, enabling efficient processing of large datasets and complex workloads.

### <mark style="color:purple;">Ecosystem and software support</mark>

* NVIDIA's extensive software ecosystem, including CUDA, cuDNN, and TensorRT, can be leveraged to optimise workloads running on the Grace CPU and Grace Hopper Superchip.
* NVIDIA's existing partnerships and collaborations with key players in the data centre industry can help drive adoption and support for the Grace CPU.
* However, the success of the Grace CPU will also depend on the broader adoption of ARM-based solutions in the data centre market and the availability of *<mark style="color:yellow;">**software optimised for ARM architectures**</mark>*.

### <mark style="color:purple;">Key features of the Grace Hopper Superchip architecture</mark>

<mark style="color:blue;">**High-performance CPU:**</mark> The <mark style="color:yellow;">72-core</mark> Grace CPU with Arm Neoverse V2 cores delivers exceptional performance for data centre workloads.

<mark style="color:blue;">**Energy-efficient memory:**</mark> The use of LPDDR5X memory in the Grace CPU provides high bandwidth while consuming less power compared to traditional DDR5 designs.

<mark style="color:blue;">**Cutting-edge GPU:**</mark> The Hopper GPU brings advancements such as HBM3 memory, increased Streaming Multiprocessors, higher frequency, and new Tensor Cores, enabling faster AI processing.

<mark style="color:blue;">**Fast interconnect:**</mark> The high-bandwidth, low-latency NVLink interconnect ensures efficient data transfer between the CPU and GPU, optimizing overall system performance.

<mark style="color:blue;">**Huge memory capacity:**</mark> With a total of 608GB of memory (512GB LPDDR5X + 96GB HBM3), the Grace Hopper Superchip can handle large datasets and memory-intensive workloads.

The NVIDIA Grace Hopper Superchip architecture combines the strengths of the Grace CPU and Hopper GPU to deliver exceptional performance, energy efficiency, and high-speed memory access.&#x20;

This powerful combination makes it well-suited for demanding data centre workloads, particularly in the areas of AI, high-performance computing, and data analytics.

NVIDIA's creation of the Grace CPU and the Grace Hopper Superchip architecture is indeed a strategic move to strengthen its position in the data centre market. Here's an analysis of NVIDIA's motivation and the competitive landscape:

### <mark style="color:purple;">Breaking into the data centre CPU market</mark>

By introducing the Grace CPU and the Grace Hopper Superchip architecture, NVIDIA aims to strengthen its position in the data centre market, challenging the dominance of x86-based processors from Intel and AMD.&#x20;

The ARM-based Grace CPU offers an alternative solution designed specifically for data centre workloads, providing better performance per watt and higher memory bandwidth compared to incumbent technologies.

Overall, the NVIDIA Grace Hopper Superchip architecture represents a significant advancement in data centre computing, combining high-performance CPU and GPU capabilities with energy efficiency and fast memory access to tackle the most demanding workloads in AI, HPC, and data analytics.
